电吹风电容

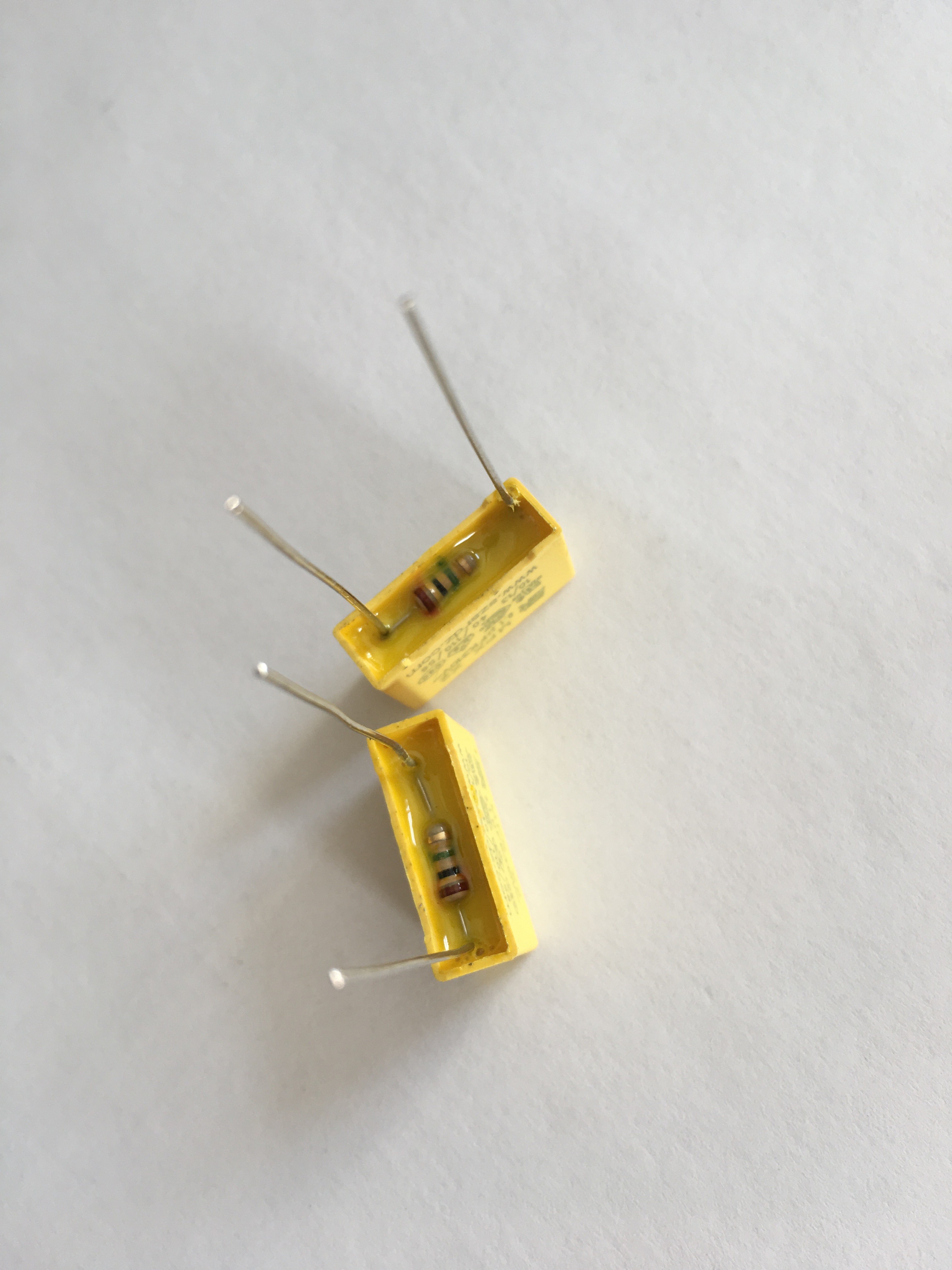

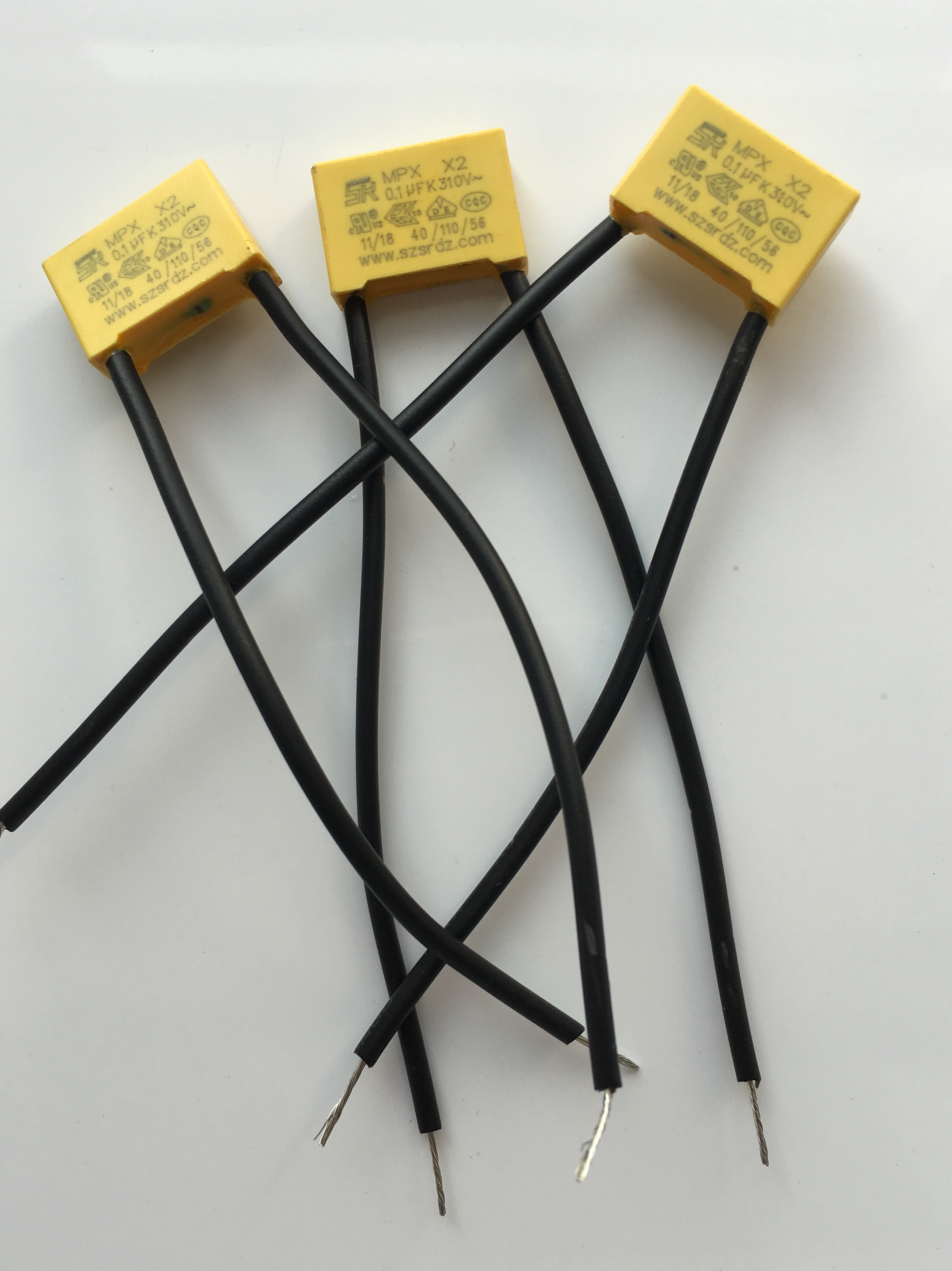

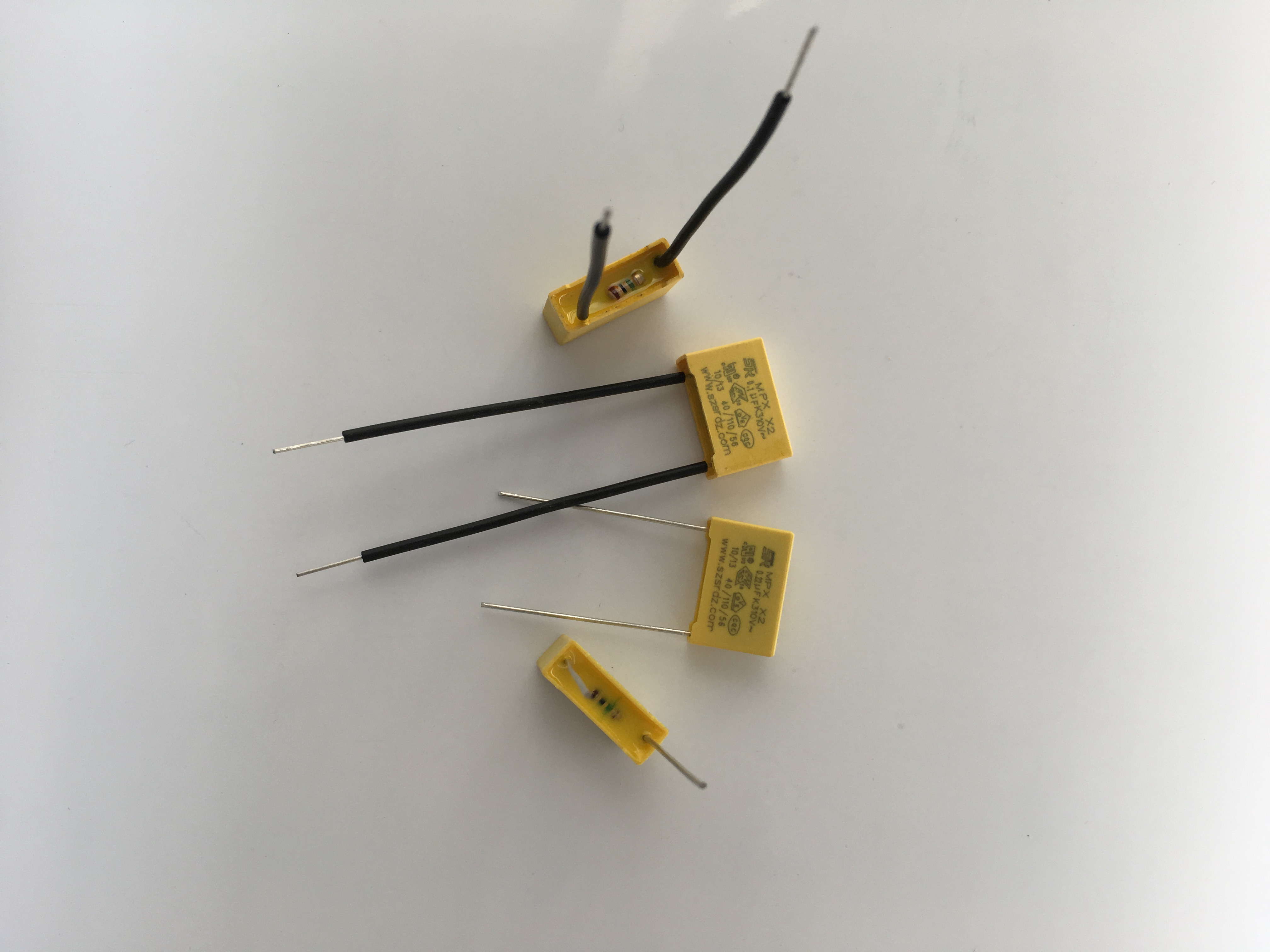

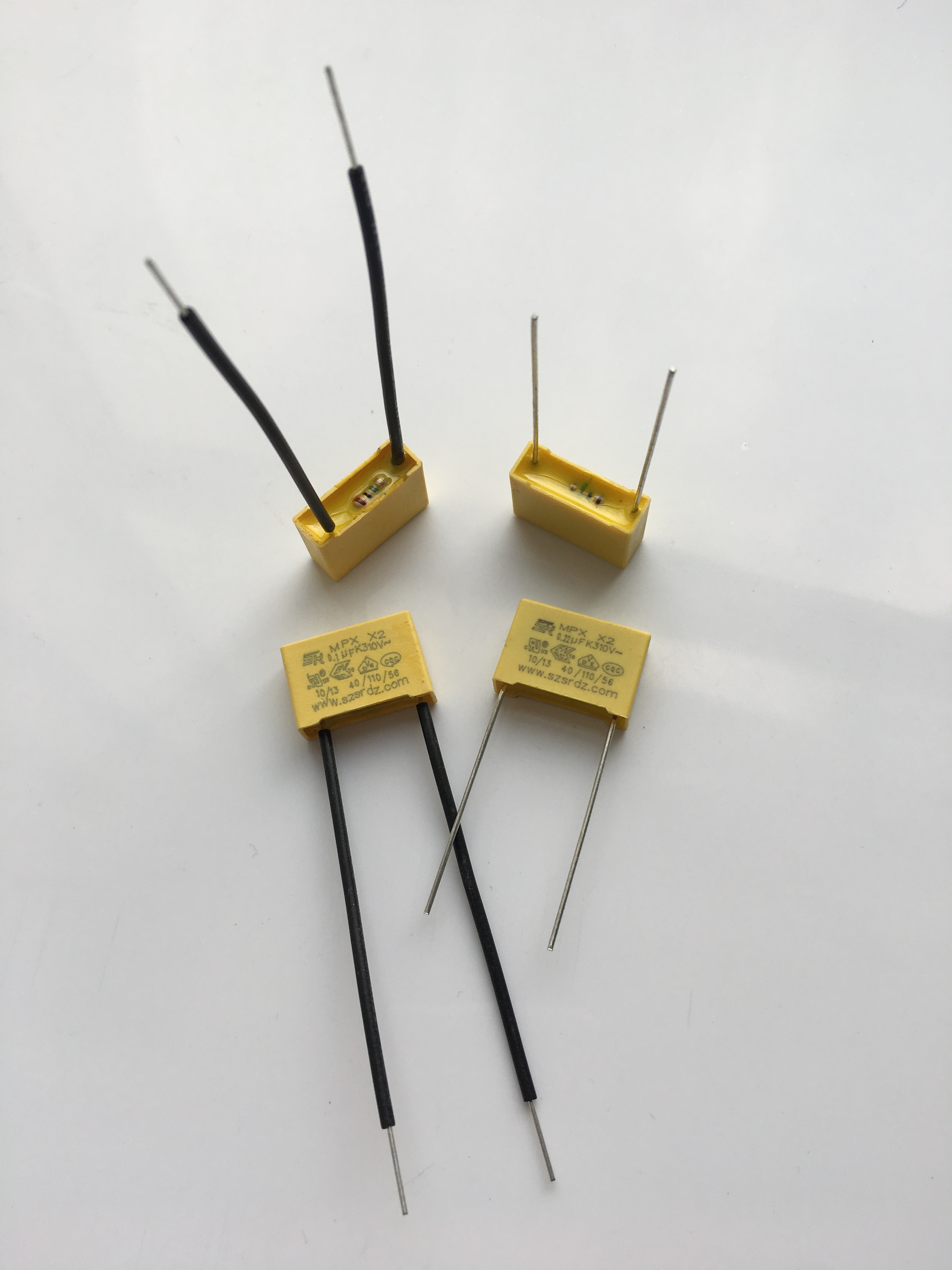

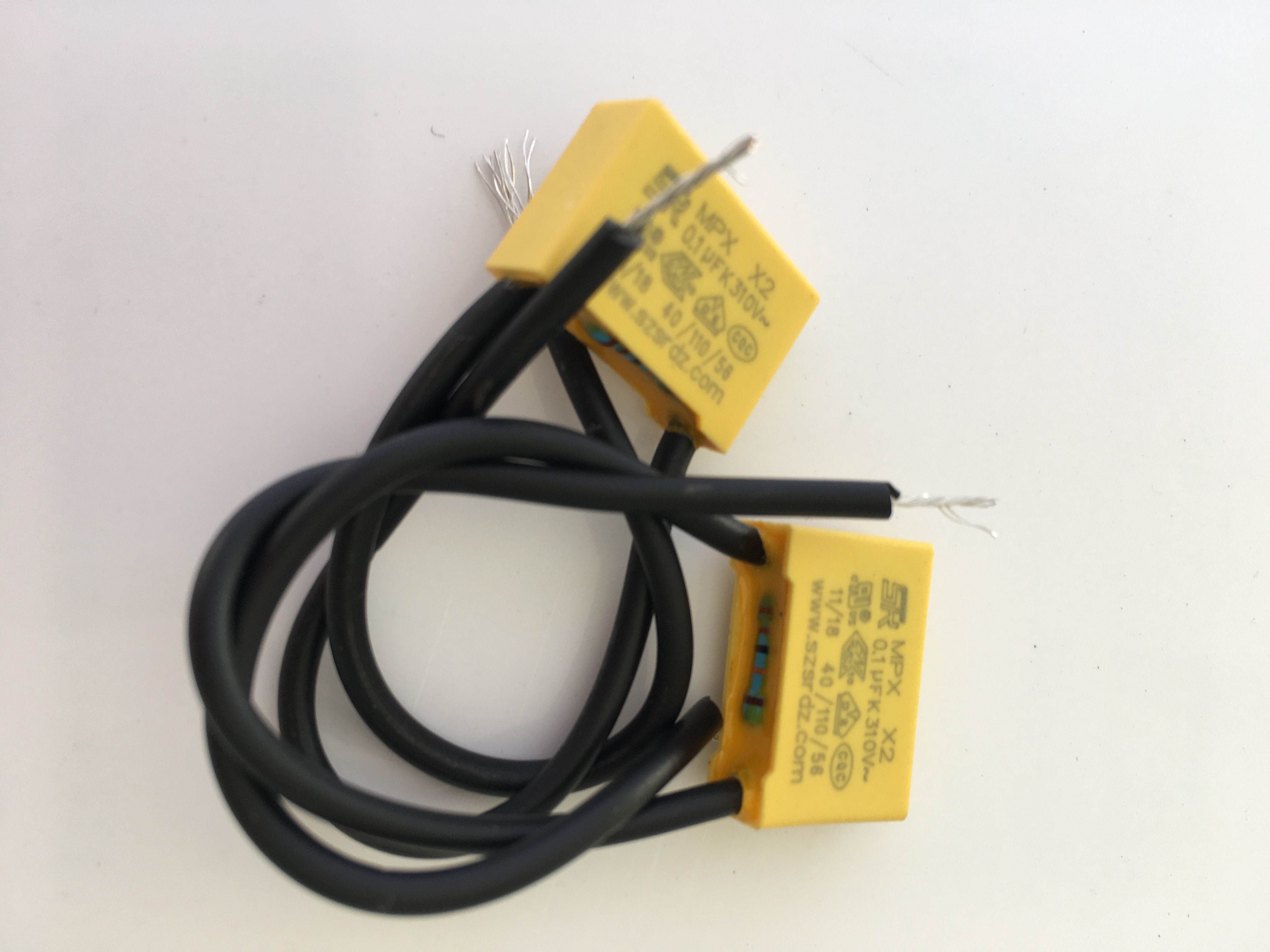

电吹风专用电容器:安规电容并联电阻

电容容量:0.1uf-0.47uf

电阻规规格:1M   1/4 W

环境温度:-40℃/110℃/56天

采用标准 Reference Standard

UL1414 U11283 EN60384-14 GB/T14472-1998 IEC60384-14

结构

介质:聚丙烯膜。 Material : Polypropylene film

电极:金属真空蒸发层(锌铝复合加厚型)。 Electrode: Metallized Vacuum Evaporated Layer (with complexing jumbo-size Zinc and Aluminum)

外壳:阻燃PBT塑壳(UL94 V-0) Case: PBT passive flammability epoxy resin 封装:阻燃环氧树脂(UL94 V-0) Enveloped with passive flammability Epoxy-resin (UL94-0)

引脚:镀锡铜包钢线或PVC电子线(UL94 V-0) Pin: Cp leads or PVC Electronic Thread(UL94 V-0)

典型应用 Using area      跨线、抑制突波、交流场合等 Across-the-line, Antenna-coupling And Line-bypass etc.

特点 Features: 体积小,有良好自愈性,抗湿性强,耐过电压性能优。 Small Sixe with good self-healing effect .Have strong moisture resistance and well proof voltage.

安全认证:VDE  UL  CQC  KC

环保标准: ROHS
