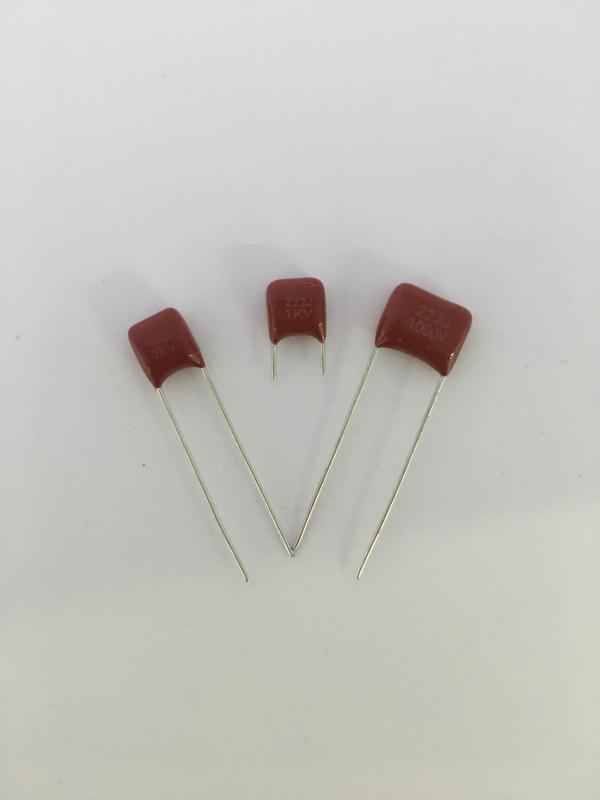

CBB21X超小型聚丙烯膜电容

采用标准 Reference Standard
IEC384-16
GB10190
结构 Structures
介质:聚丙烯膜。 Material : Polypropylene film
电极:金属真空蒸发层。
Electrode: Metallized Vacuum Evaporated Layer
封装:阻燃环氧树脂(UL94 V-0)
Enveloped with passive flammability Epoxy-resin (UL94-0)
典型应用 Using area
高频、直流、交流及脉冲大电流场合。
如:灯具,监视设备、电源等
High Frequency, DC, AC and Impulsion High Current conditions.
E. g. Lamps, Lanterns, power etc
特点 Features:
体积极小,有良好自愈性;高频损耗小,温升低。
高冲击强度,高频交流条件下有良好的耐压性能。
Small Size with good self-healing effect. Very low loss at high frequency,
The low temperature in changing with high impact. Have well voltage
Proof features under the high frequency AC current.
